Description

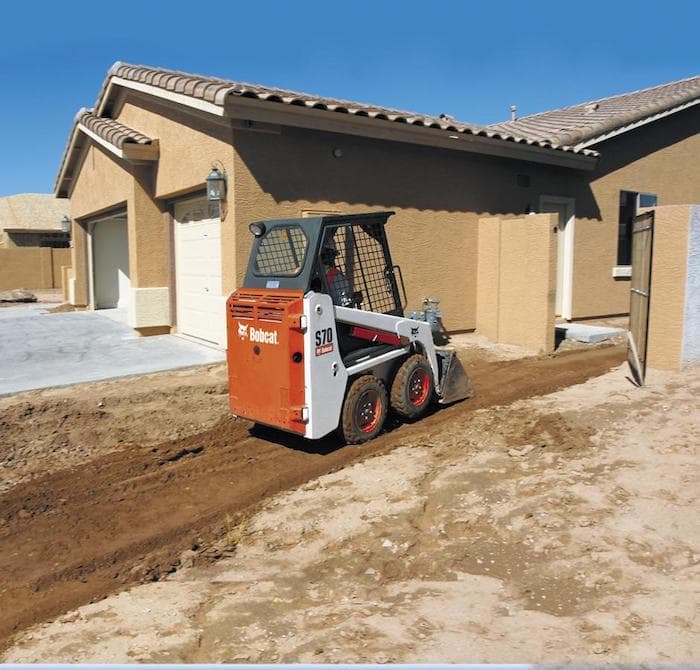

The compact Bobcat® S70 skid-steer loader is small enough to get in the tight spots, yet tough enough to get you out. This agile little workhorse is only 6 ft. tall and 3 ft. wide — the ideal size for scooting through narrow doorways, corridors, aisles, alleys and gates, and for working under low ceilings. It’s the perfect loader whenever the job is too big for a shovel or the space is too small for a larger machine.



Dimensions
Length 75.6 in
Length without Attachment 75.6 in
Length with Standard Bucket 97.3 in
Width 35.5 in
Width (with bucket) 36 in
Height 71.4 in
Height with Operator Cab 71.4 in
Height to Bucket Hinge Pin 94.5 in
Reach @ Maximum Height 15.8 in
Turning Radius 58.7 in
Wheelbase 28.4 in
Performance
Rated Operating Capacity (SAE) 700 lb
Tipping Load 1512 lb
Operating Weight 2795 lb
Travel Speed 6.1 mph
Engine
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 23.5 hp
Hydraulic System
System Relief @ Quick Couplers 3,000 psi
Auxiliary Std Flow 9.8 gal/min
Auxiliary High Flow n/a
